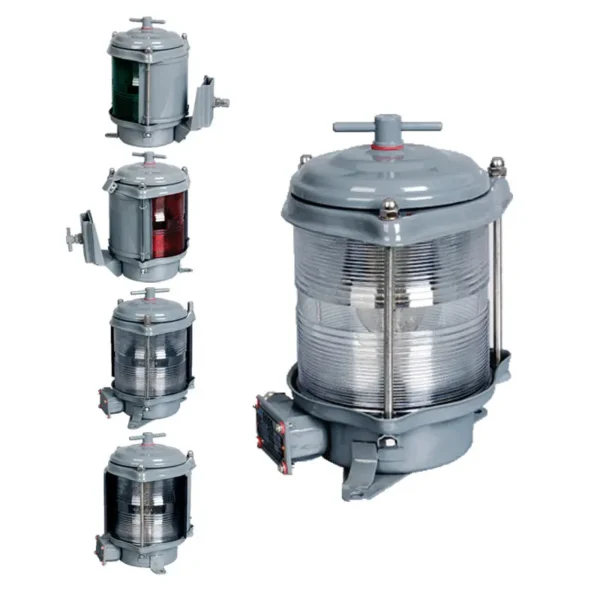

Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The light bulbs and lamp holder adopts plug-in and the bulb can be replaced after open the up cover.
4. The signal lights adopt the navigation bulb, and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃ ~55℃ .
Adopt standard
1. Conform to《THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972》and《GRADE ENTRY NORMS FOR STEEL SHIPS》.
2. Conform to the international standard IEC60598-1-2008.
3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
Production authentication
1. Approval by CCS(China Classification Society), certificate number ZJ20P4028.
2. Passed the authentication of CE.
3. By the American Bureau of Shipping “ABS” certification, certificate number 18-SQ1799333-PDA
| Voltage | 24V/110V/220V |
| Power | 60W/65W |
| Lamp holder | P28S |
| Protection class | IP56 |
| Cable outside diameter | Φ12-Φ13 |
| IMPA Code | Name | Model | Visibility | Level arc | Color |
| 370422 | Starboard light | CXH1-101P | 3n.m | 112.5° | Green |
| 370423 | Port light | CXH2-101P | 3n.m | 112.5° | Red |
| 370421 | Masthead light | CXH3-101P | 6n.m | 225° | White |
| 370424 | Stern light | CXH4-101P | 3n.m | 135° | White/Yellow |
| 370426-370428 | All-round light | CXH6-101P | 3n.m | 360° | Red/Green/White |
