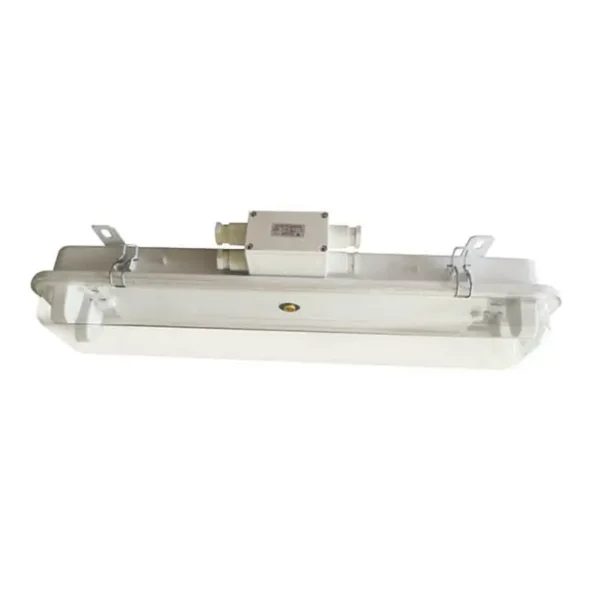

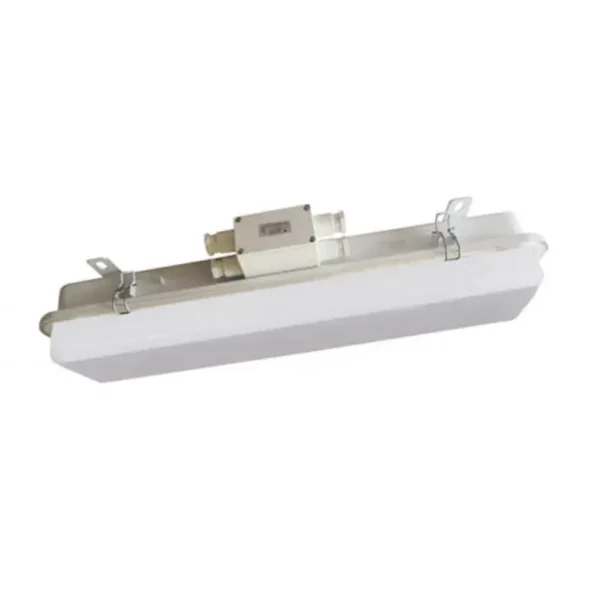

The scope of application
Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc.
Products characteristic
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing rod with the mark
in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped B15d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks themarking, remark clear that need the emergency device when order.
5. Equipped compensating capacitance inside the lamp, also has the good effect of start.
| Model | JCY24-2 | JCY24-2E | JCY24-2EF | JCY44-2 | JCY44-2E | JCY44-2EF |
| Power | 2*20W | 2*40W | ||||
| Voltage | 110V/60Hz / 220V/50Hz / 220V/60Hz | |||||
| Power factor | ＞0.85 | |||||
| Lamp holder | G13 | |||||
| Protection class | IP56 | |||||
| Cable outside diameter | Φ12-Φ16 | |||||
| Annex
|
JCY24-2E & JCY44-2E with B15d emergency lamp holder
JCY24-2EF & JCY44-2EF with B15d emergency lamp holder and metal guard |
|||||
